6.1 Impurity Rule

R figure

Python figure

Code

#| echo: false

import matplotlib.pyplot as plt
import numpy as np

c = 1 / 2
pos = c * 100
neg = 100

def entropy(P, N):
    if P == 0 or N == 0:
        return 0
    p = P / (P + N)
    n = N / (P + N)
    return -p * np.log2(p) - n * np.log2(n)

def gini(P, N):
    p = P / (P + N)
    n = N / (P + N)
    return 2 * p * n

def dkm(P, N):
    return np.sqrt(gini(P, N))

def minacc(P, N):
    p = P / (P + N)
    n = N / (P + N)
    return min(p, n)

def metric(tp, fp, m):
    if tp + fp == 0:
        return 0
    Pos = pos
    Neg = neg
    N = Pos + Neg
    TP = tp
    FP = fp
    FN = Pos - TP
    TN = Neg - FP
    if m == 'accuracy': return (TP + TN) / N
    if m == 'wracc': return TP / N - (TP + FP) * (TP + FN) / N**2
    if m == 'confirmation':
        A = (TP + FP) * (FP + TN) / N**2
        B = FP / N
        C = np.sqrt((TP + FP) * (FP + TN) / N**2)
        return (A - B) / (C - A)
    if m == 'generality': return (TP + FP) / N
    if m == 'precision': return TP / (TP + FP)
    if m == 'laplace-precision': return (TP + 1) / (TP + FP + 2)
    if m == 'f-measure': return 2 * TP / (2 * TP + FP + FN)
    if m == 'g-measure': return TP / (FP + Pos)
    if m == 'precision*recall': return TP**2 / ((TP + FP) * (TP + FN))
    if m == 'avg-precision-recall': return TP / (2 * (TP + FP)) + TP / (2 * (TP + FN))
    if m == 'aucsplit': return (TP * Neg + Pos * TN) / (2 * Pos * Neg)
    if m == 'balanced-aucsplit': return TP / Pos - FP / Neg
    if m == 'chi2':
        return (TP * TN - FP * FN)**2 / ((TP + FP) * (TP + FN) * (FP + TN) * (FN + TN))
    if m == 'info-gain':
        return entropy(Pos, Neg) - (TP + FP) / N * entropy(TP, FP) - (FN + TN) / N * entropy(FN, TN)
    if m == 'gini':
        return gini(Pos, Neg) - (TP + FP) / N * gini(TP, FP) - (FN + TN) / N * gini(FN, TN)
    if m == 'dkm':
        return dkm(Pos, Neg) - (TP + FP) / N * dkm(TP, FP) - (FN + TN) / N * dkm(FN, TN)
    if m == 'entropy': return entropy(TP, FP) / 2
    if m == 'giniimp': return gini(TP, FP)
    if m == 'dkmimp': return dkm(TP, FP)
    if m == 'minacc': return minacc(TP, FP)

x = np.arange(0, neg + 1)
y = np.arange(0, pos + 1)
X, Y = np.meshgrid(x, y)

def rocgrid():
    plt.figure(figsize=(6, 6))
    plt.xlim(0, neg)
    plt.ylim(0, pos)
    plt.xlabel("Negatives")
    plt.ylabel("Positives")
    plt.xticks([0, neg], ['0', 'Neg'])
    plt.yticks([0, pos], ['0', 'Pos'])
    plt.gca().set_aspect('auto')
    for gx in np.arange(0, neg + 1, 10):
        plt.axvline(x=gx, color='gray', linestyle='dotted')
    for gy in np.arange(0, pos + 1, 10):
        plt.axhline(y=gy, color='gray', linestyle='dotted')
    slope = pos / (c * neg)
    x_vals = np.array([0, neg])
    plt.plot(x_vals, slope * x_vals, linestyle='solid', color='black')

def compute_z(m):
    z = np.zeros_like(X, dtype=float)
    for i in range(X.shape[0]):
        for j in range(X.shape[1]):
            z[i, j] = metric(Y[i, j], X[i, j], m)
    return z

def contour2(m, col, lty, levels):
    Z = compute_z(m)
    plt.contour(X, Y, Z, levels=levels, colors=col, linestyles=lty)

p1 = c * 80
n1 = 20
p2 = c * 100
n2 = 60

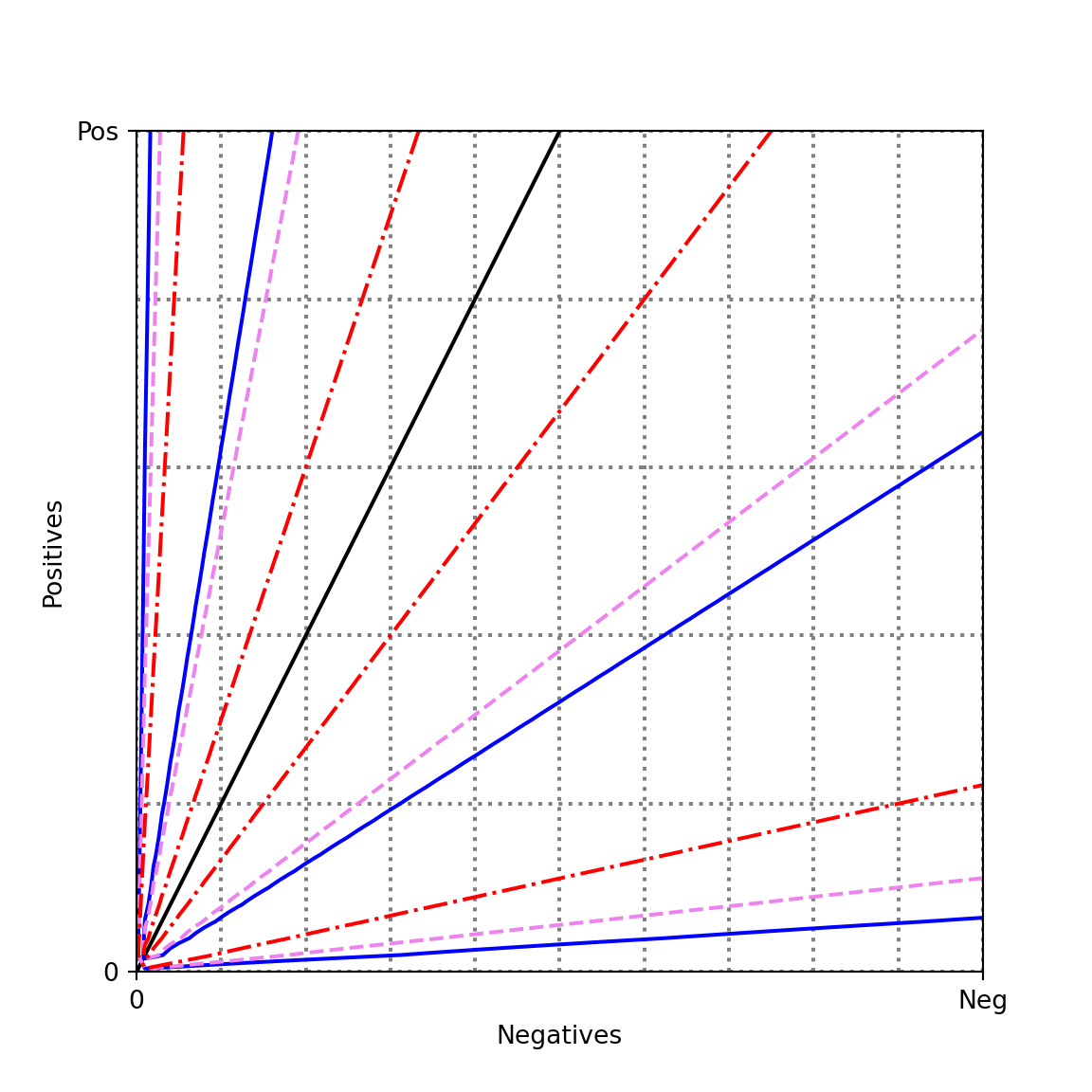

rocgrid()
values = [0.1, 0.4]
contour2('entropy', 'blue', 'solid', values)
contour2('giniimp', 'violet', 'dashed', values)
contour2('minacc', 'red', 'dashdot', values)

plt.show()
