5.7 DT Cost

R figure

Python figure

Code

import numpy as np
import matplotlib.pyplot as plt

c = 10
pos = c * 100
neg = 100

def rocgrid():
    plt.figure(figsize=(6, 6))
    plt.xlim(0, neg)
    plt.ylim(0, pos)
    plt.xlabel("Negatives")
    plt.ylabel("Positives")
    plt.grid(True, which='both', color='gray', linewidth=0.5)
    plt.xticks([])
    plt.yticks([])

def entropy(P, N):
    if P == 0 or N == 0:
        return 0
    p = P / (P + N)
    n = N / (P + N)
    return -p * np.log2(p) - n * np.log2(n)

def gini(P, N):
    if P + N == 0:
        return 0
    p = P / (P + N)
    n = N / (P + N)
    return 4 * p * n

def dkm(P, N):
    if P + N == 0:
        return 0
    p = P / (P + N)
    n = N / (P + N)
    return 2 * np.sqrt(p * n)

def metric(tp, fp, m):
    if tp + fp == 0:
        return 0
    Pos = pos
    Neg = neg
    N = Pos + Neg
    TP = tp
    FP = fp
    FN = Pos - TP
    TN = Neg - FP
    if m == 'accuracy': return (TP + TN) / N
    if m == 'wracc': return TP / N - (TP + FP) * (TP + FN) / N ** 2
    if m == 'confirmation':
        base = (TP + FP) * (FP + TN) / N ** 2
        return (base - FP / N) / (np.sqrt(base) - base) if base != 0 else 0
    if m == 'generality': return (TP + FP) / N
    if m == 'precision': return TP / (TP + FP)
    if m == 'laplace-precision': return (TP + 1) / (TP + FP + 2)
    if m == 'f-measure': return 2 * TP / (2 * TP + FP + FN)
    if m == 'g-measure': return TP / (FP + Pos)
    if m == 'precision*recall': return TP ** 2 / ((TP + FP) * (TP + FN))
    if m == 'avg-precision-recall': return TP / (2 * (TP + FP)) + TP / (2 * (TP + FN))
    if m == 'aucsplit': return (TP * Neg + Pos * TN) / (2 * Pos * Neg)
    if m == 'balanced-aucsplit': return TP / Pos - FP / Neg
    if m == 'chi2':
        num = (TP * TN - FP * FN) ** 2
        den = (TP + FP) * (TP + FN) * (FP + TN) * (FN + TN)
        return num / den if den != 0 else 0
    if m == 'info-gain': return entropy(Pos, Neg) - (TP + FP) / N * entropy(TP, FP) - (FN + TN) / N * entropy(FN, TN)
    if m == 'gini': return gini(Pos, Neg) - (TP + FP) / N * gini(TP, FP) - (FN + TN) / N * gini(FN, TN)
    if m == 'dkm': return dkm(Pos, Neg) - (TP + FP) / N * dkm(TP, FP) - (FN + TN) / N * dkm(FN, TN)
    if m == 'entropy': return (TP + FP) / N * entropy(TP, FP)
    if m == 'giniimp': return (TP + FP) / N * gini(TP, FP)
    if m == 'dkmimp': return dkm(TP, FP)
    return 0

x = np.arange(0, neg + 1)
y = np.arange(0, pos + 1)
z = np.zeros((len(y), len(x)))

save = False
colour1 = "red" if not save else "black"
colour2 = "blue" if not save else "black"

def contours(m, method):
    for i in range(len(x)):
        for j in range(len(y)):
            z[j, i] = metric(y[j], x[i], m)
    plt.contour(x, y, z, levels=10, colors=colour1, linestyles="solid")

def contour1(m, col, lty, tp, fp):
    for i in range(len(x)):
        for j in range(len(y)):
            z[j, i] = metric(y[j], x[i], m)
    v = metric(tp, fp, m)
    plt.plot(fp, tp, 'o', color=col)
    plt.contour(x, y, z, levels=[v], colors=col, linestyles=lty)

def plotmetric(m, method):
    rocgrid()
    contours(m, method)
    if save:
        plt.savefig(f"{m}.png", dpi=300)

def plotmetrics():
    plotmetric('accuracy', "edge")
    plotmetric('precision', "edge")
    plotmetric('f-measure', "edge")
    plotmetric('precision*recall', "edge")
    plotmetric('info-gain', "flattest")
    plotmetric('gini', "flattest")
    plotmetric('dkm', "flattest")

p1 = c * 80
n1 = 20
p2 = c * 100
n2 = 60

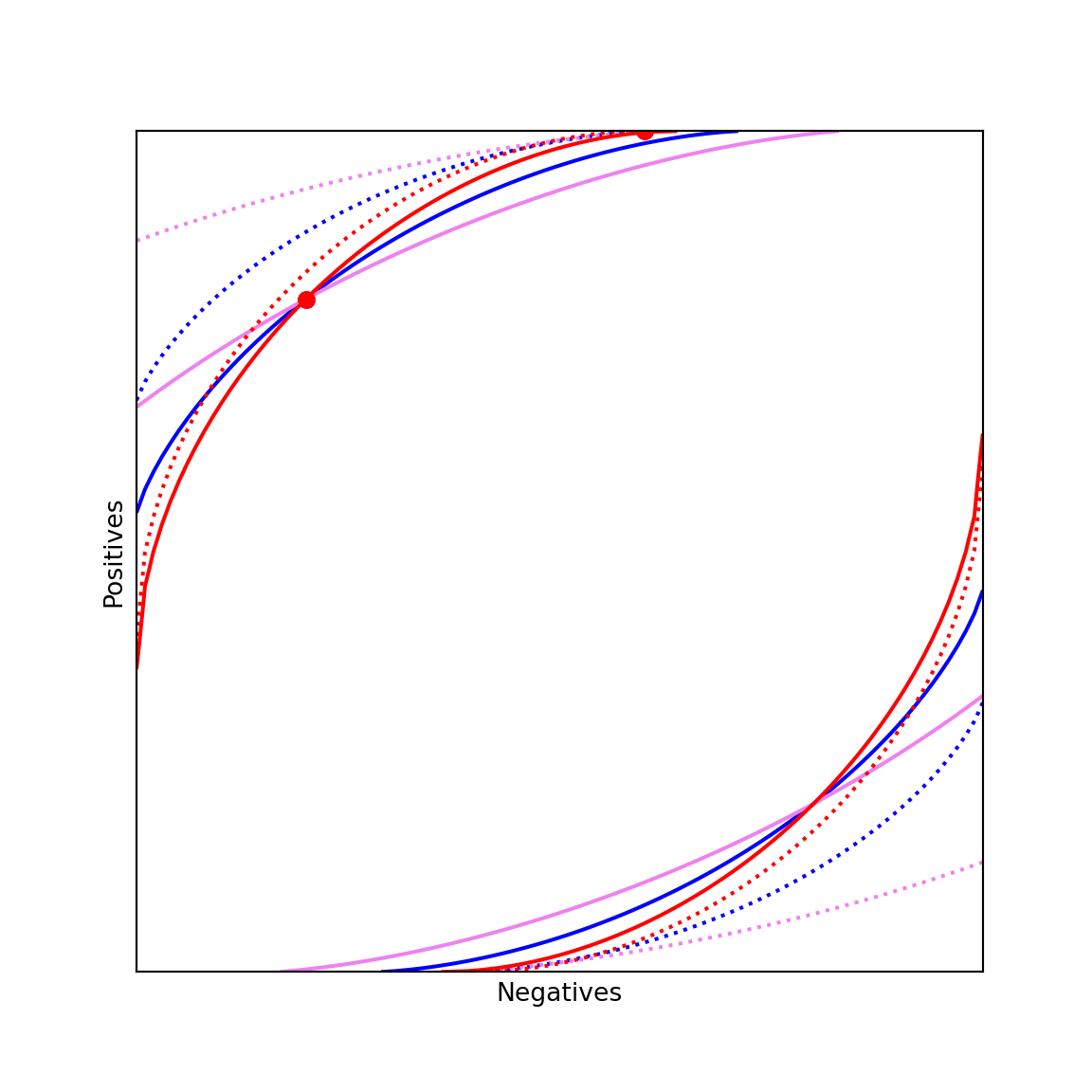

rocgrid()
contour1('info-gain', 'blue', 'solid', p1, n1)
contour1('info-gain', 'blue', 'dotted', p2, n2)
contour1('gini', 'violet', 'solid', p1, n1)
contour1('gini', 'violet', 'dotted', p2, n2)
contour1('dkm', 'red', 'solid', p1, n1)
contour1('dkm', 'red', 'dotted', p2, n2)

plt.show()
